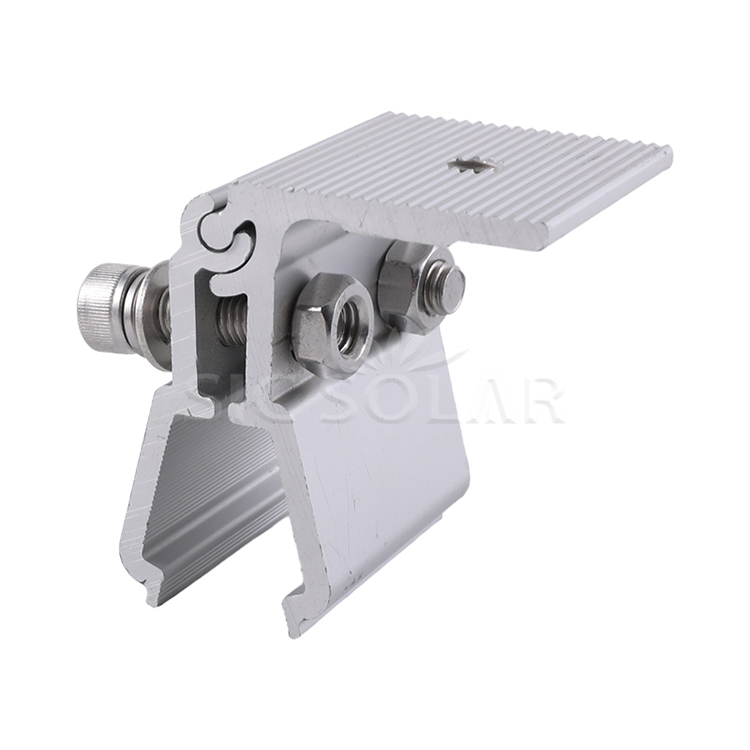

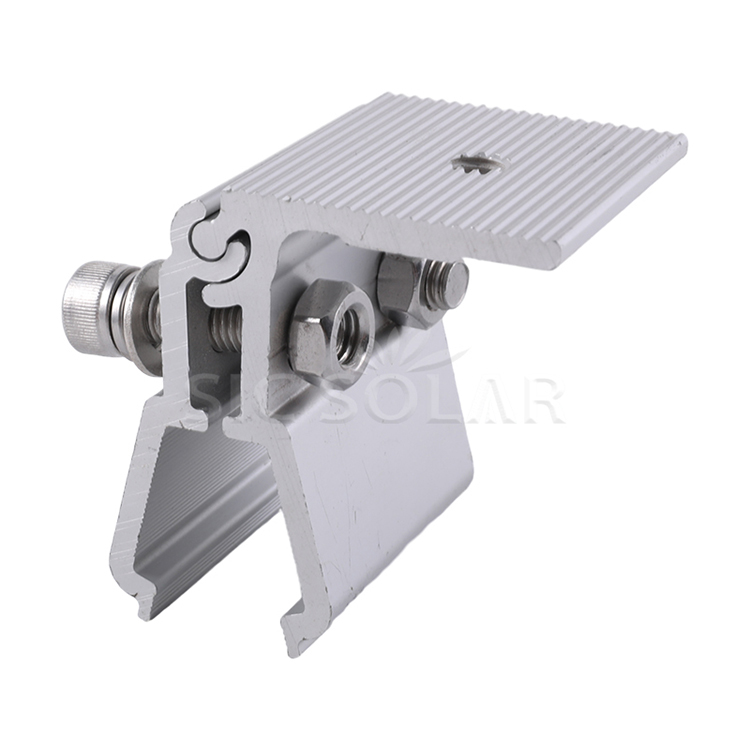

Aluminiumklipp Lok Solar Clamp

Aluminum Klip Lok Solar Clamp is a specialized installation solution designed for mounting solar panels on metal roofs, especially those with a Klip Lok profile. This system provides a safe, non-penetrating method to fix solar panels, ensuring the integrity and lifespan of both the roof and the solar installation.

Analogous Products

Details

• Item NO.： SIC-TC-03
• Installation Site： Roof
• Material： Al6005-T5
• Wind Load： <60M/S
• Snow Load： <1.4KN/M²
• Color： Natural or Customized
• Warranty： 10 years and 25 years service time

Advantages

1. Maintains roof integrity: No drilling required, reducing the risk of leaks or structural damage.
2. Strong grip: Holds firmly to metal seams even under strong winds or vibrations.
3. Fast and easy to install: Reduces installation time, especially for large commercial roofs.
4. Low maintenance: Corrosion-resistant materials provide long-lasting performance with minimal maintenance costs.
5. Wide range of applications: Compatible with most Klip-Lok roof types and solar mounting systems.

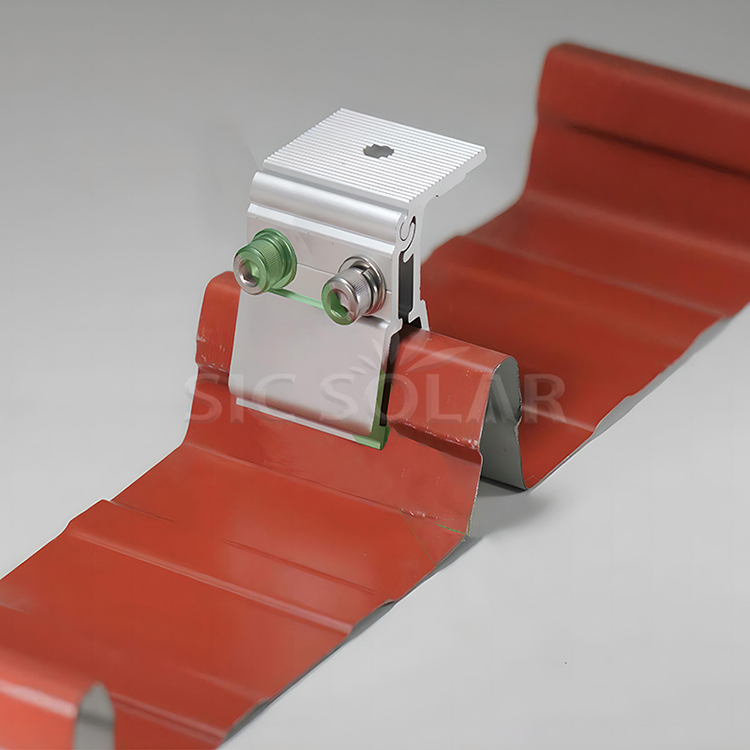

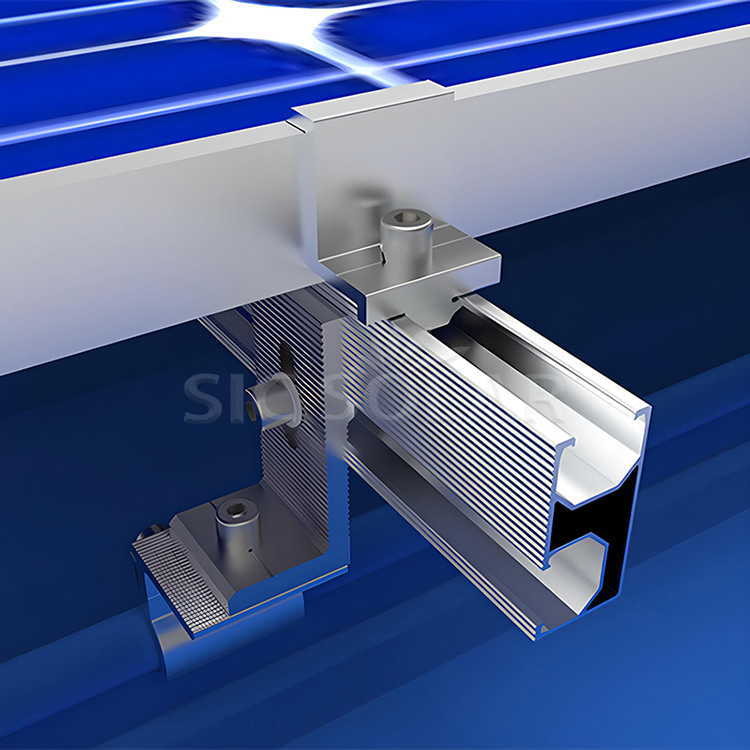

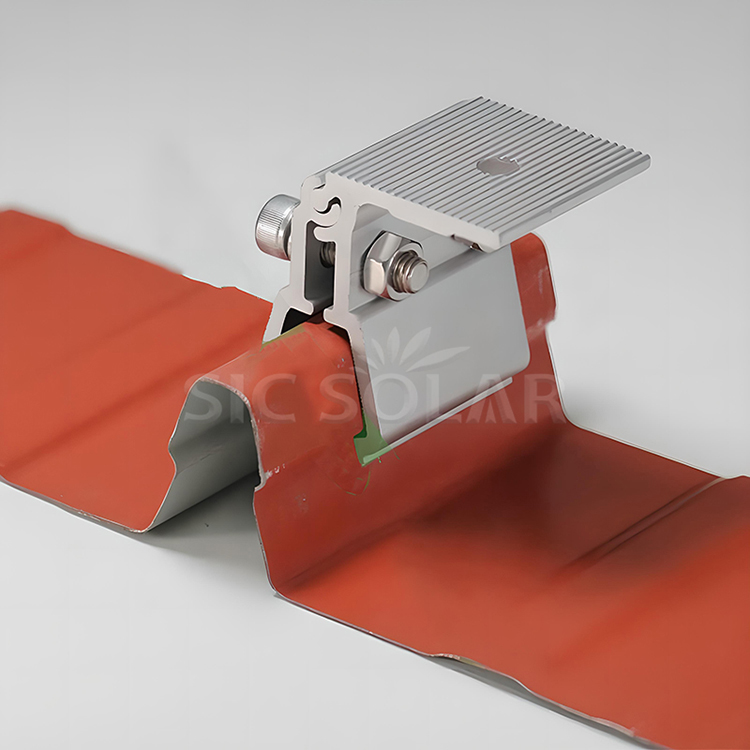

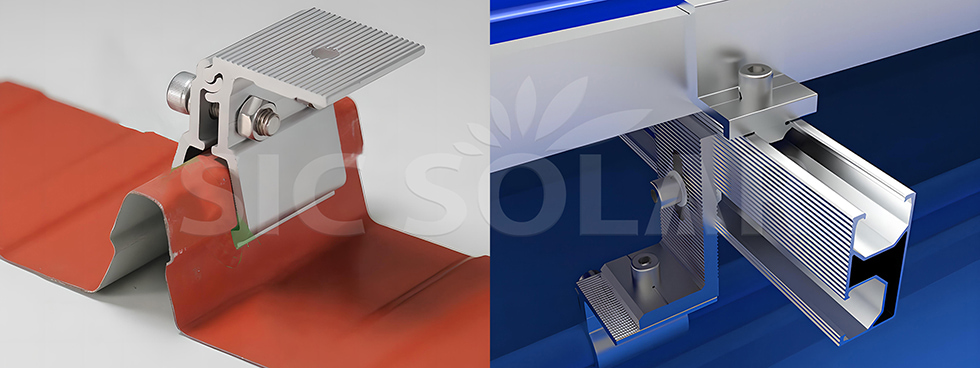

Installation Display

Installation Process

1. Aluminum Klip Lok Solar Clamp: Install the clips to the metal roof with suitable fasteners.
2. Grounding Clips: Install grounding clips for electrical safety.
3. Solar Panels: Mount the solar panels on mounting rails and secure them with end clamps.
4. Mid clamps: Secure solar panels along the rails.
5. Final Check: Ensure that all connections are secure and the installation is waterproof.

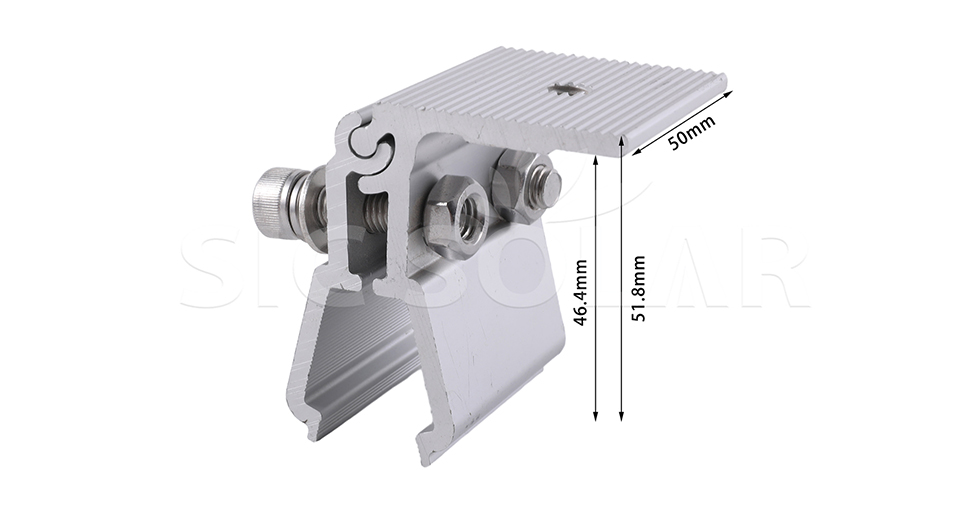

Size Information

Package

We use Aluminum Klip Lok Solar Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
